Hello,

I bought a EAGLE cruise control , it is really a speed controller. It is mechanical and has black and red wire to be connected.

The red wire needs to go to the break light switch, which is connected to a relais inside the cruise control.

So whenever I break this will then automatically shut off the cruise control.

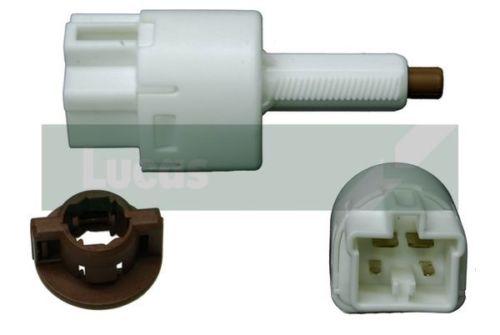

Can anybody tell me which is the Plus inside the break light switch ? (see picture)

I took off the plug and saw two flat pins and two small pins.

I contacted the wire on the big pins, but then the cruise control didnot function anymore and I was not able to switch it on.

Then I did connect it to the small pins and it gave the same result

Can anybody help me with this question.

I am living in Holland and will go on Sunday to Austria, so I hope to have fix this before the weekend.

Regards, Bert


Share this post


Link to post
Share on other sites

using a multi meter set on 20v dc test between earth on the car and one of the pins

1 pin will be the live side the other pin will be a switched live cable

i.e. only becomes live when the pedal is pressed.

the light earth will be found on the rear light multi plug.

Share this post


Link to post
Share on other sites

Hi Mark,

Usefull advice !  Althought I didnot use the multi meter, I figured out it was the right big pin which was the switch live pin.
