Replacing Boot Light

Recommended Posts

I want to change the boot light bulb on my 2017 Auris Hybrid but there appears to be conflicting information on the web and owners handbook.  Do I prise the cover away from the side panel or do I have to remove the side panel and gain access from the back of it?


Share this post


Link to post
Share on other sites

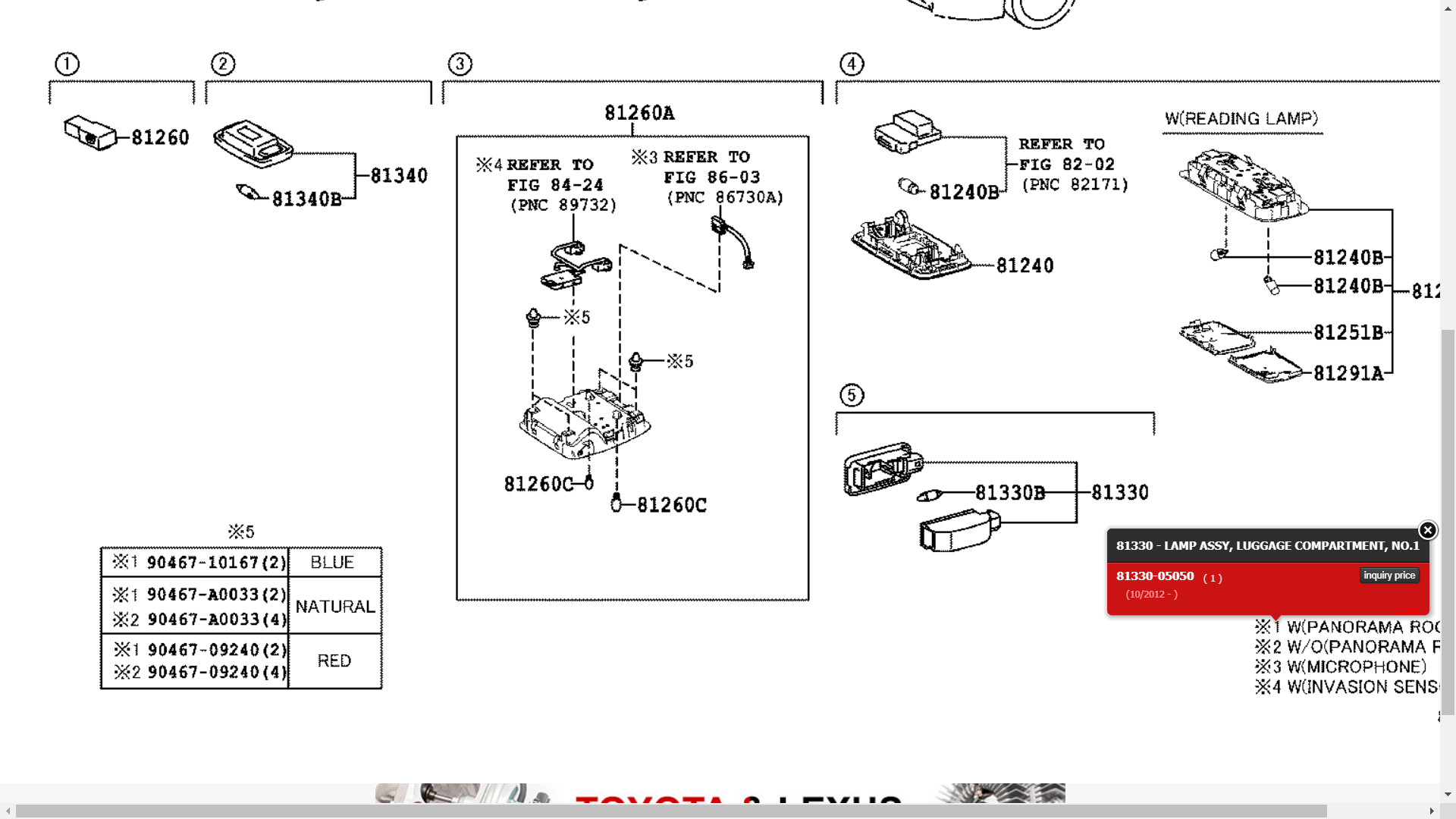

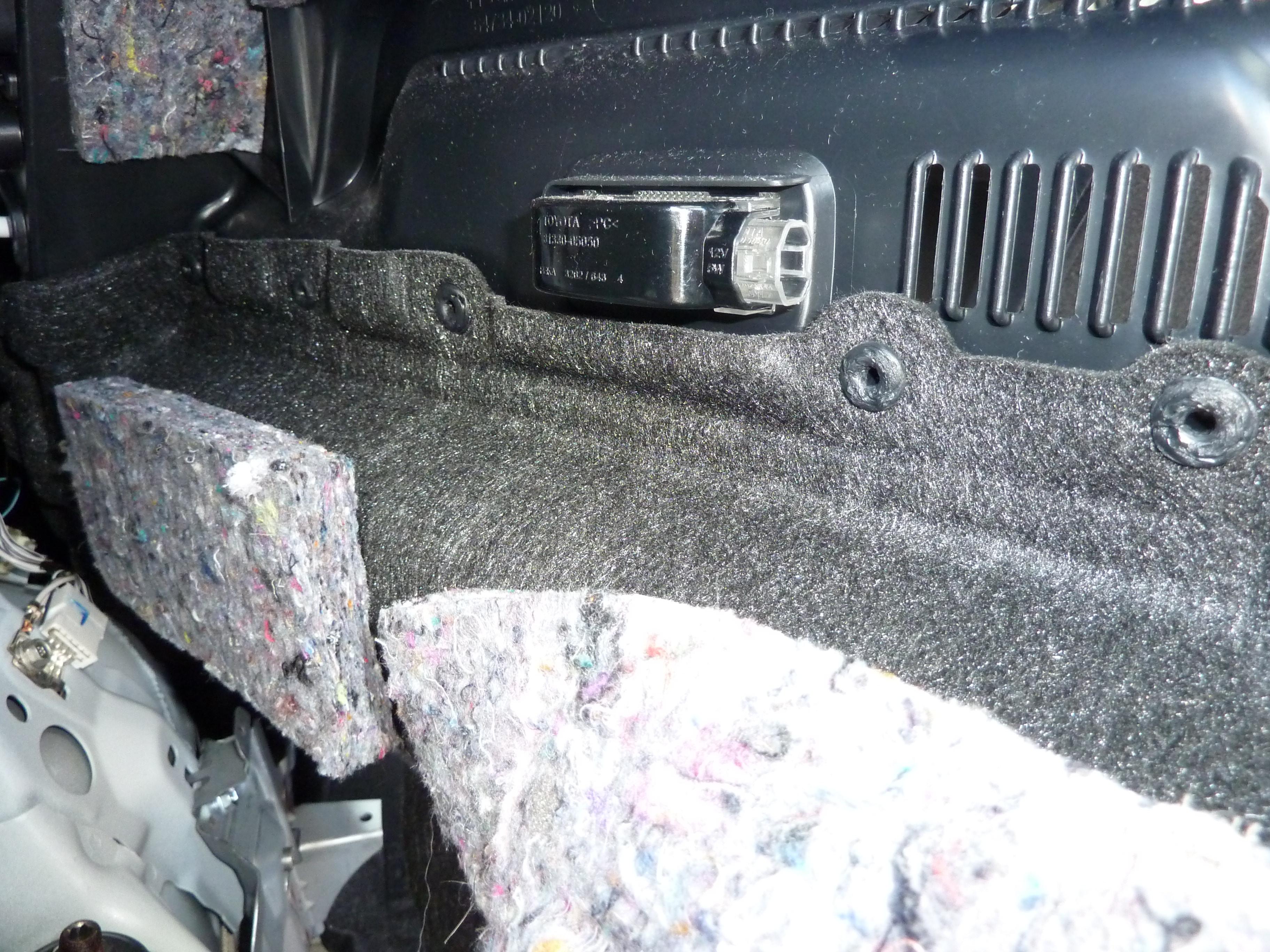

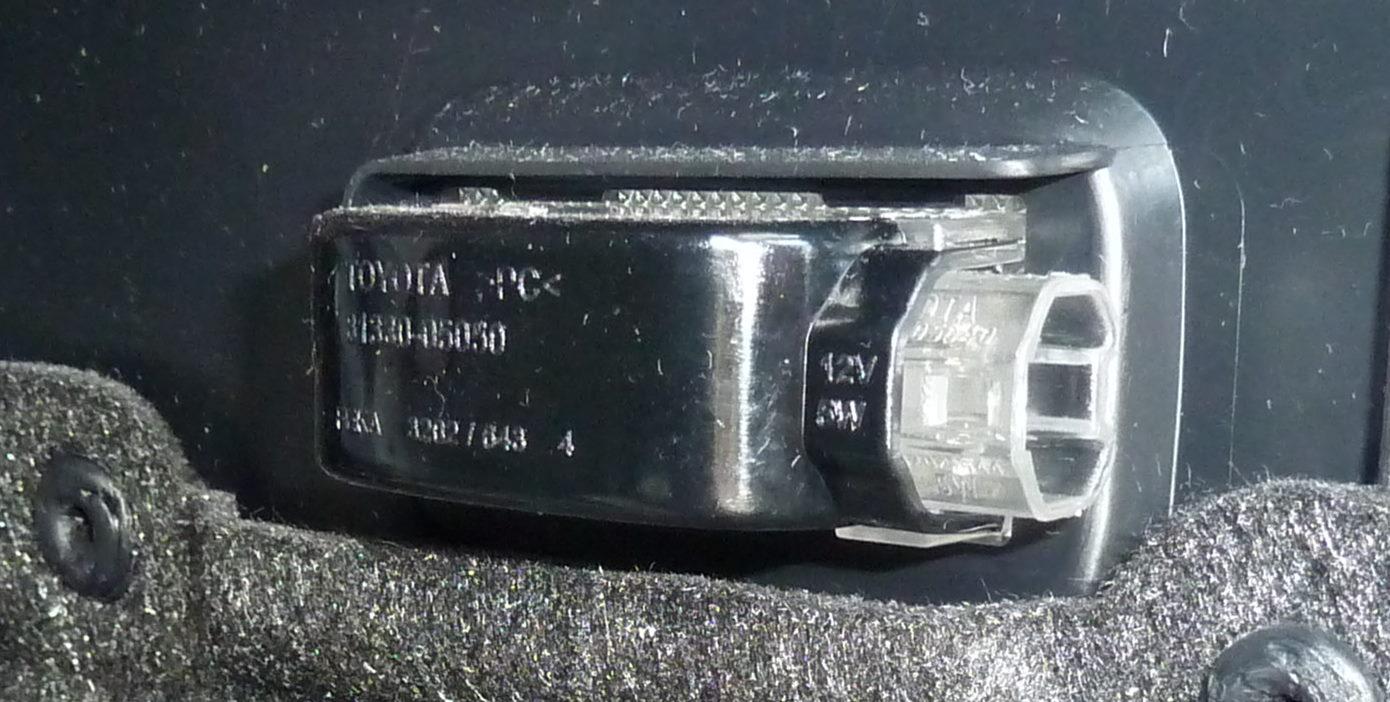

The back of the light fitting looks like this (these pictures are actually from our car):-

P1130462.thumb.JPG.ecc28c71f9e1f32d676773064f9b718a.JPGP1130462a.thumb.JPG.8e01887e3d518fa8f9c261d7d45cc0e8.JPG

I changed the bulb 3 years ago, I seem to remember that the fitting will come out from the front, but it was stiff, and the clear plastic appears brittle.

I had this trim out to do something unrelated.

This guide seems useful, it's for a Yaris, but the unit looks identical, but mounted upside down:-

https://www.paulstravelpictures.com/Toyota-Yaris-Cargo-Area-Light-Bulb-Replacement-Guide/2012-2016-Toyota-Yaris-Cargo-Area-Trunk-Light-Bulb-Replacement-Guide-016.html

I'm not sure if this answers your question!

Share this post


Link to post
Share on other sites

From what I remember when replacing the existing festoon lamp, with a l.e.d. equivalent (Yaris), it wasn't necessary to remove any trim. The complete light unit prised out from one end by using a small screwdriver after wrapping it's blade in tape. Unplug the connector, remove the opaque plastic cover and change the lamp. Refit is reverse etc..

The above is assuming the same arrangement and light.

Share this post


Link to post
Share on other sites

I check my car - Avensis Tourer 2009. The cars share the same part. To remove the fitting, I used a trim tool. A flat bladed screwdriver should suffice. Insert the tool to the end closes to the seat, then carefully lever out. You need to push against the tab, but don't use too much force.
20200203_163317.thumb.jpg.47e8edea72dc7b1221c7f1332fe6f993.jpg 20200203_163227.thumb.jpg.2d03e5f194b4f0014a74764354a50fae.jpg

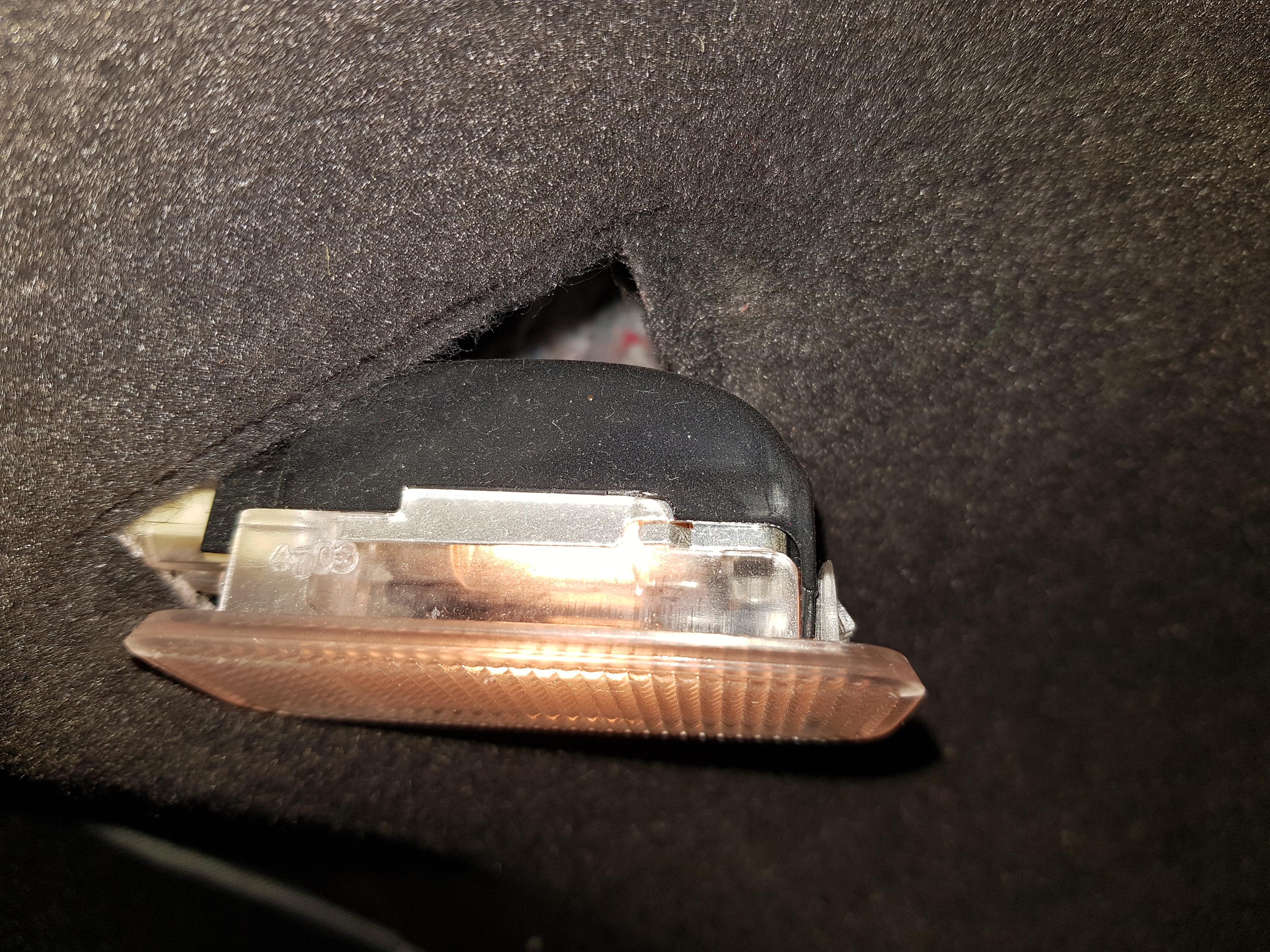

Using a tool to lever the light.
20200203_163248.thumb.jpg.394cb3454b002d31cb8dfcfb27520f21.jpg 20200203_163254.thumb.jpg.70981b9e959412d4ce736c88a9035bf4.jpg

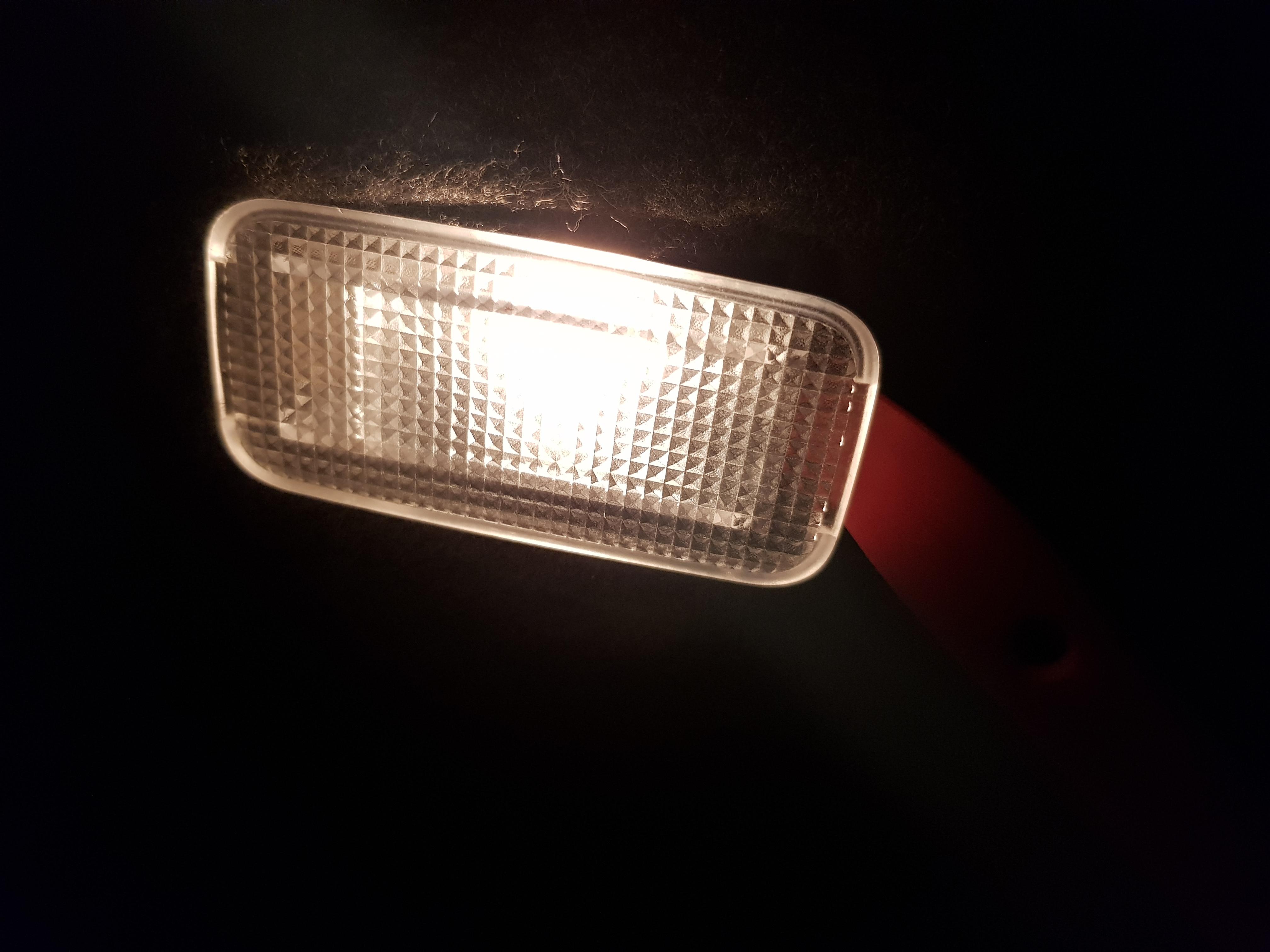

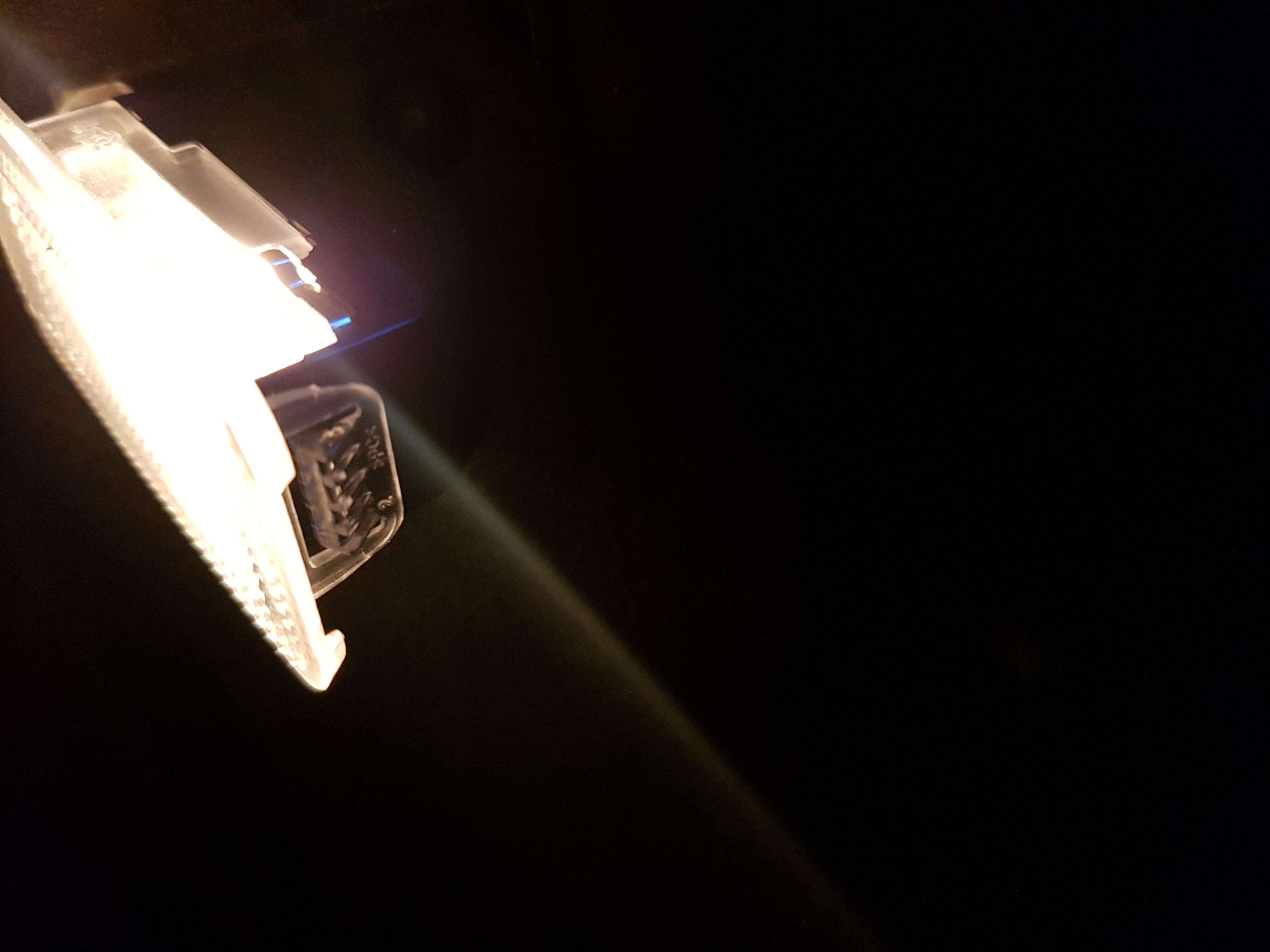

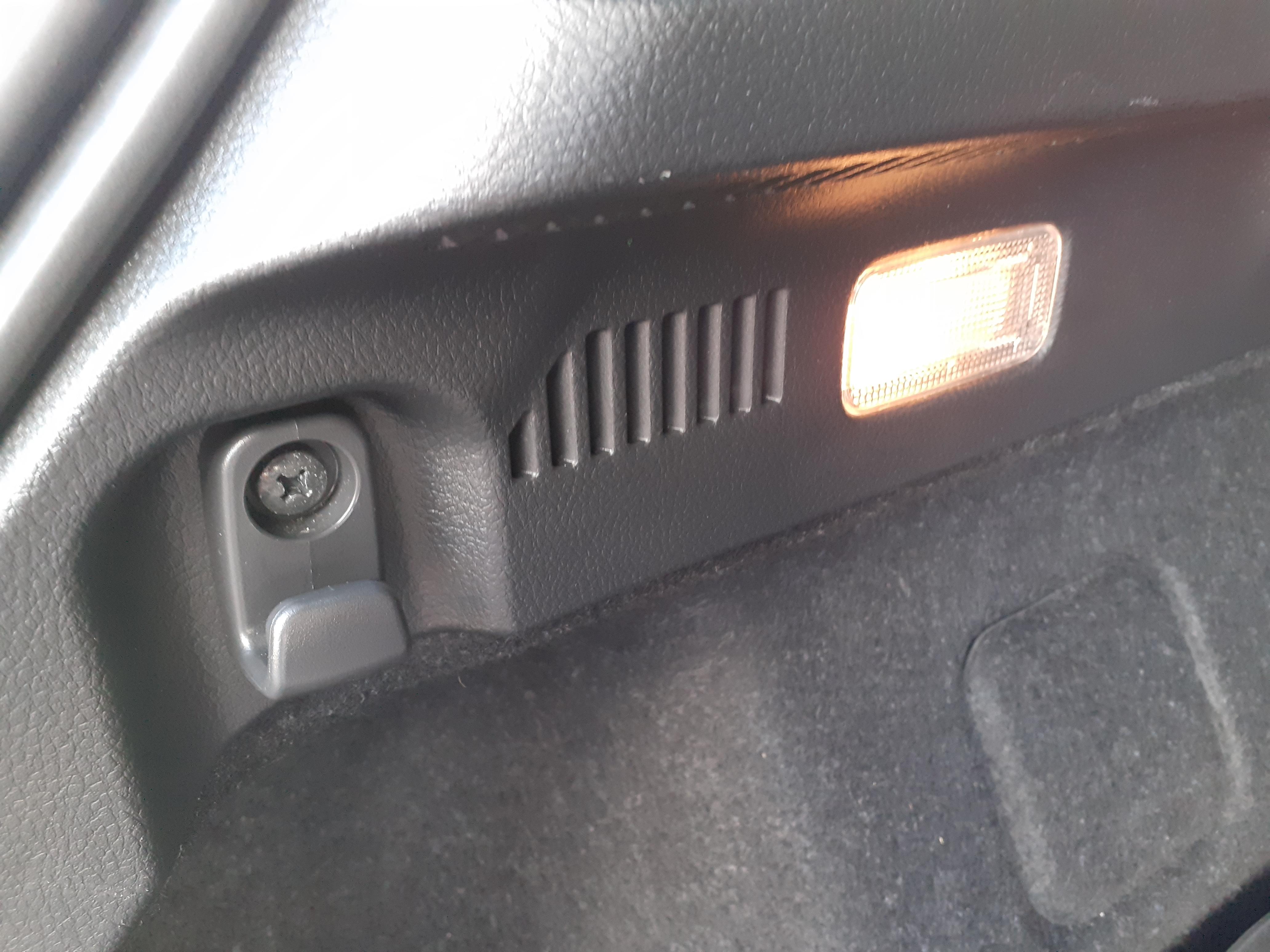

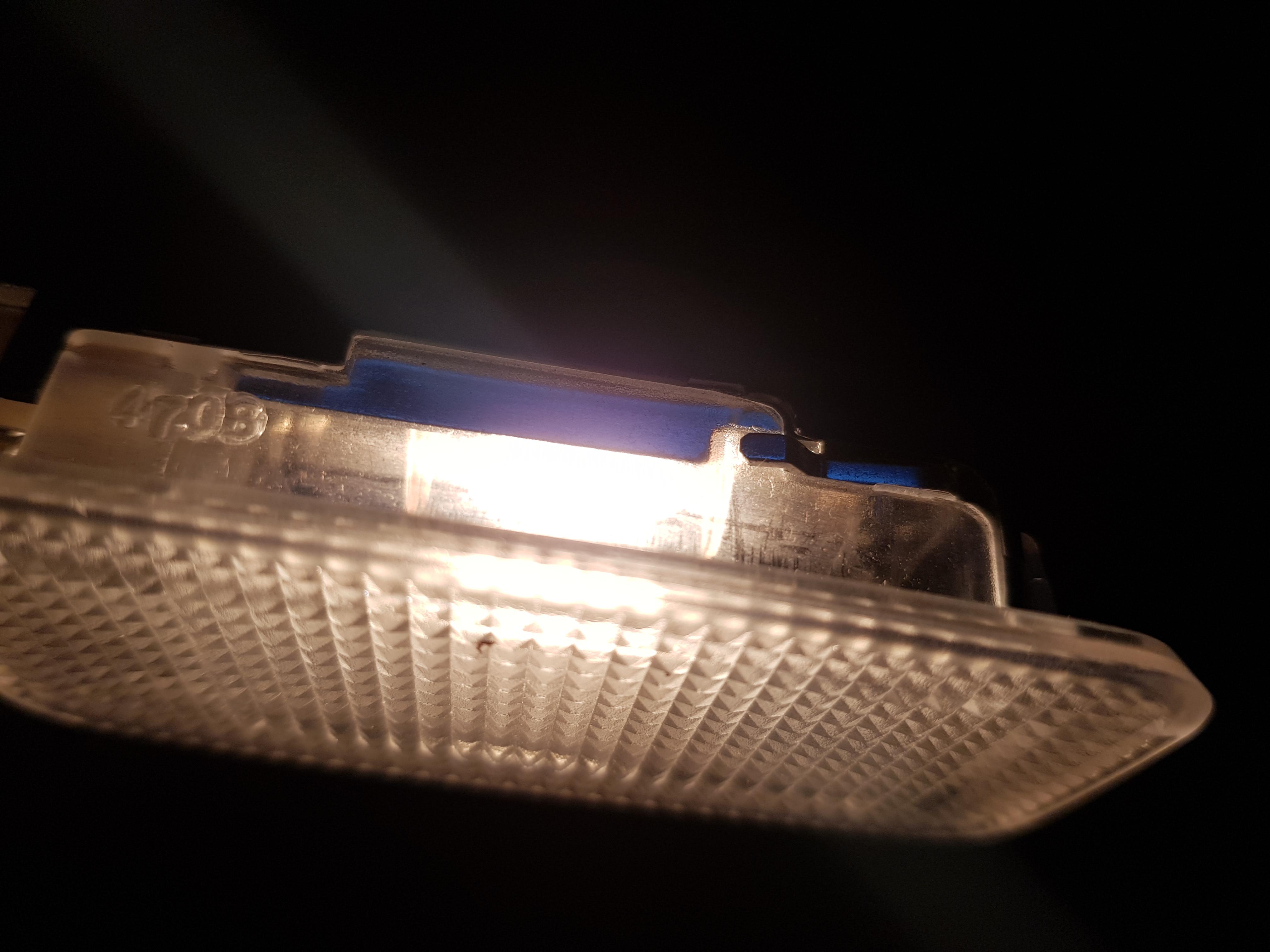

Photos showing the light fittings.



I checked the part number to confirm they are the same, before demonstrating removal.


Share this post


Link to post
Share on other sites

Thanks to all who have responded.  I'll try prising it with a flat baled screwdriver covered in cloth with due care as mentioned and let you know how it went.

Share this post


Link to post
Share on other sites

What type of bulb is used in the booth?



Share this post


Link to post
Share on other sites

The bulb is a double ended 12v 5w, and known as C5W.


Toyota part number shows as 90981-WE003.


Share this post


Link to post
Share on other sites

I put a LED one with a heatsink last year. It's much brighter, you can actually see clearly what's in the boot.

If you want to replace it, you need to measure it's length, i think the boot one is 34 or 36mm.

  • Like 1

Share this post


Link to post
Share on other sites
On 2/3/2020 at 5:07 PM, Konrad C said:

I check my car - Avensis Tourer 2009. The cars share the same part. To remove the fitting, I used a trim tool. A flat bladed screwdriver should suffice. Insert the tool to the end closes to the seat, then carefully lever out. You need to push against the tab, but don't use too much force.
20200203_163317.thumb.jpg.47e8edea72dc7b1221c7f1332fe6f993.jpg 20200203_163227.thumb.jpg.2d03e5f194b4f0014a74764354a50fae.jpg
Using a tool to lever the light.
20200203_163248.thumb.jpg.394cb3454b002d31cb8dfcfb27520f21.jpg 20200203_163254.thumb.jpg.70981b9e959412d4ce736c88a9035bf4.jpg
Photos showing the light fittings.



I checked the part number to confirm they are the same, before demonstrating removal.


I managed to access my boot light on a 2017 Auris exactly like the photographs above.

The handbook said the bulb is a double ended yet mine is single ended as show below.

Thanks for everyone's help


Share this post


Link to post
Share on other sites
On 2/4/2020 at 7:05 AM, Auris-Frankie said:

What type of bulb is used in the booth?

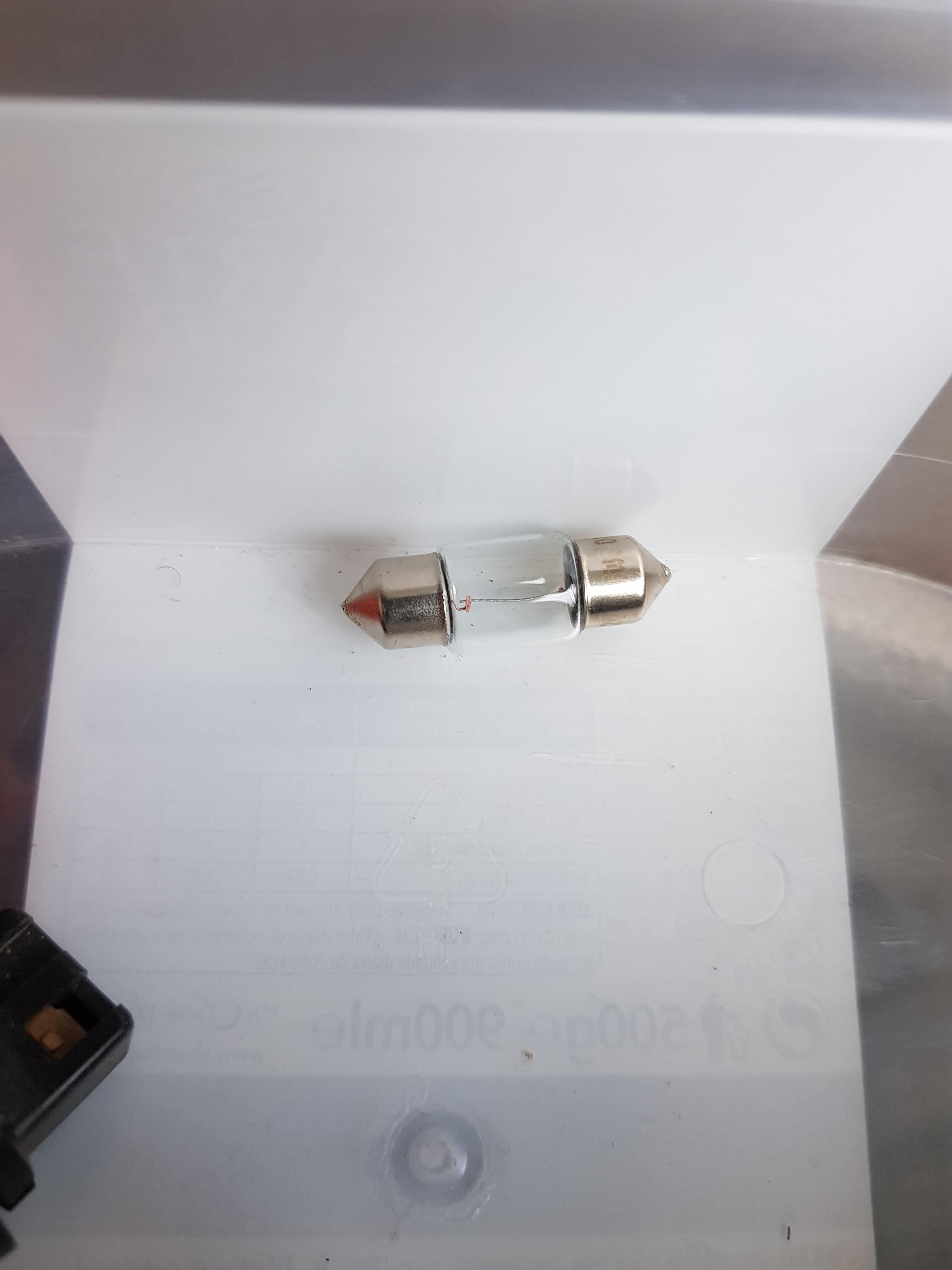

My 2017 Auris Hybrid has this:


Share this post


Link to post
Share on other sites

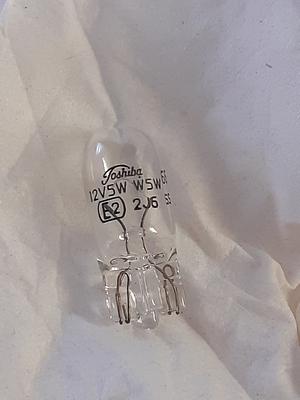

It says on the bulb, its W5W, they are most often used for dome lights, parking and license plate lights.

Share this post


Link to post
Share on other sites

after replacing the interior lights with leds the only other light i hated

is found in the glovebox why is it yellow ???

i have removed the yellow bulb and replaced it with a white 12v led

you can actually see what is in the glovebox now.

Share this post


Link to post
Share on other sites

Whilst I was looking at other things on my car (Avensis T27) for the forum, I checked the boot light and got the following photos.

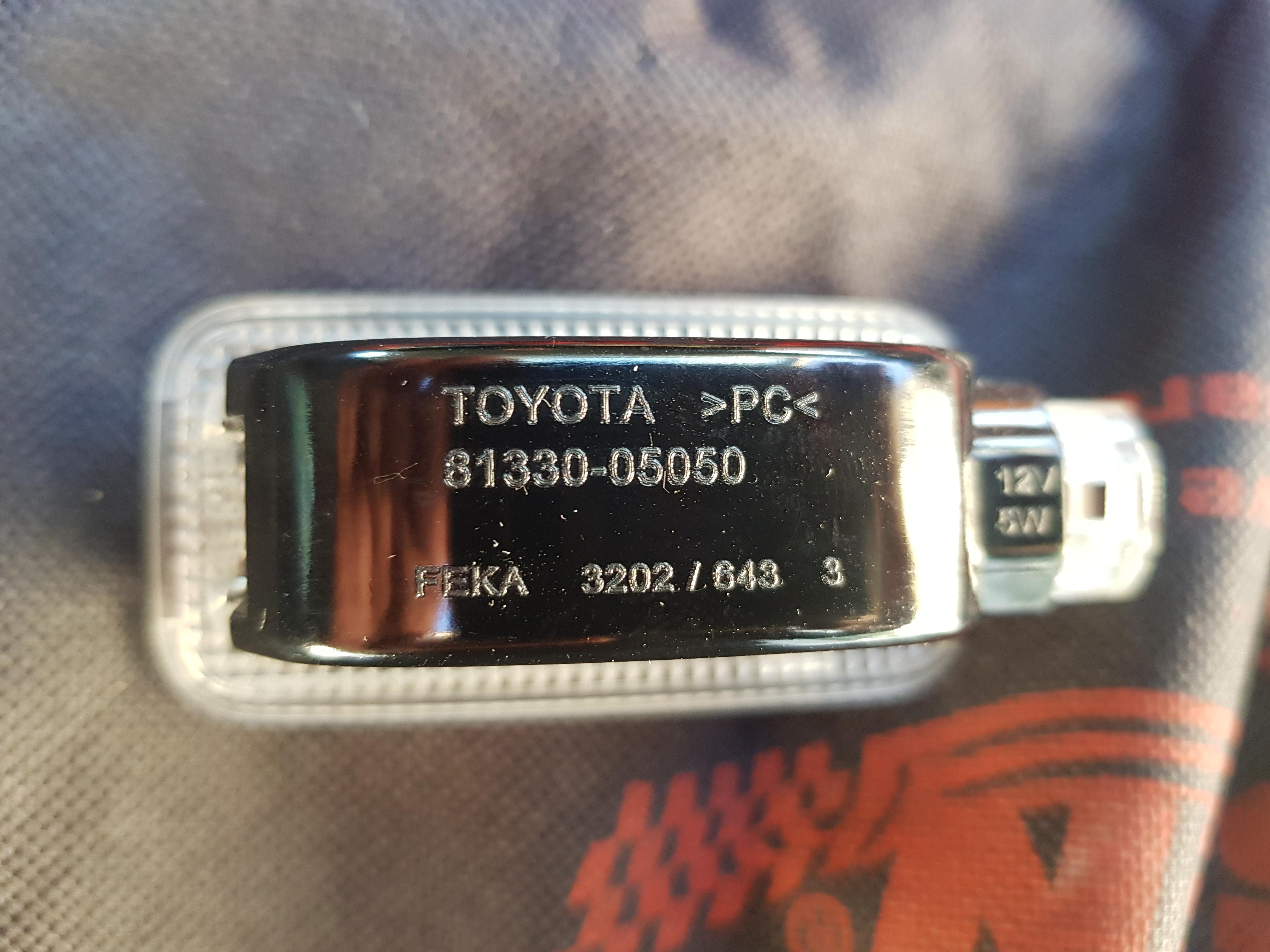

20200206_134901.thumb.jpg.244166eb32e9cdf4f216670d98c6b7da.jpg  20200206_135405.thumb.jpg.9e76aaf3469c88f1aab593a9859f9794.jpg

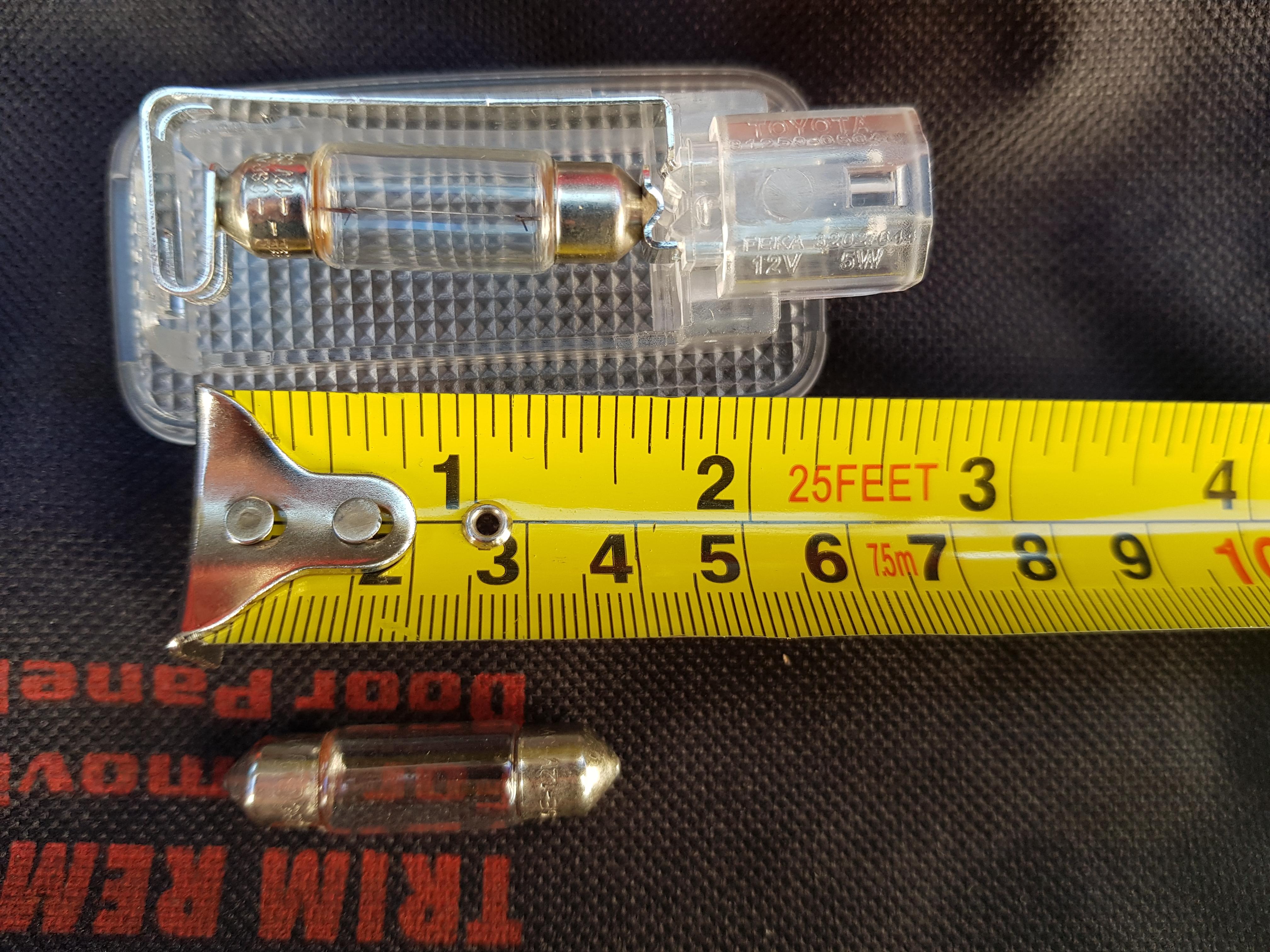

The bulb is 1½" (40mm) in length. The one I had shown in my earlier post is not the correct length. For those wanting to use LED this might help. It's always best to check the bulb in person before buying replacement, especially if information for different models are conflicting!

Share this post


Link to post
Share on other sites

Thanks for responses. I measured today, in my 2014 Auris it's the C5W, 39 mm.
