  1. What is the navigation software version? Press setup then scroll down to Software update.
  2. Mirror covers on Aygo are offered as accessories and a pair pre-painted in: 211 - Black 8W9 - Cyan 1E0 - Gray 4W5 - Orange 3P0 - Red 1E7 - Silver 068 - White 8R7 - Deep Blue Come to £49.82 incl VAT for the pair.
  3. Traditional key or Keyless ignition? Is there anything like a carpet mat obstructing / ridden up under the clutch pedal as if so it may be preventing the clutch pedal switch from being pressed? If its keyless is the steering lock releasing when the ignition is on, if not try moving the steering wheel to the side whilst turning on the ignition? If keyless try holding the key partially over the start switch as you switch the ignition on.
  4. What software version is installed on your head unit? To check press setup, scroll down to "software update" latest navigation version is 1520 and includes fixes: MEU Software release version 1520: Wrong navigation guidance speech in Hungarian: translation of word "street" said twice by the navigation unit. Wrong side of navigation traffic information for left-hand traffic countries. When using voice recognition to input an address, it does not recognise voice input. Due to error related to sampling frequency mismatch. When using map, it appears loading endlessly. Navigation cursor turning more or less than vehicle due to gyroscope wrong calibration. MEU Software release version 1512 After ignition on the map view is not displayed and the driver will see a black screen. The functions of the DCU remain fully functional.
  5. Toyota published info on the upcoming MY20 C-HR today as factory orders for current model are now all filled. Full specifications will be confirmed late Septembers with dealer demo's arriving late October & initial customer deliveries late Quarter 4 2019. MY20 will be Hybrid only gone is the 1.2t Petrol , 1.8 Hybrid gains a new Lithium hybrid battery, New 2.0 Hybrid ( from Corolla ) introduced. Models/trims Icon 1.8 HSD only with optional Tech pack, key changes: LED rear lights, New alloy wheel design, Improved MM system, Rain sensing wipers Design 1.8 & 2.0 with optional Leather, key changes: Parabola LED Headlights, Intelligent Clearance Sonar, Improved MM system, Improved TSS Excel 1.8 & 2.0 with optional JBL, key changes: Projector LED headlights, Heated steering wheel, LED fog lights, Enhanced safety features, Improved MM system, Improved TSS Dynamic.1.8 & 2.0 with optional Leather/JBL, key changes: New Seat fabric design, New alloy wheel design, Enhanced safety features, Improved MM system, Improved TSS Improved MM Introduction of MM19 ( Multimedia ) including Apple carplay, Android auto, OTA map updates, improved Nav functionality, e-call
  6. Devon Aygo

    Colour code

    Yellow is 5B9, Black is 211
  7. Devon Aygo

    DAB issues

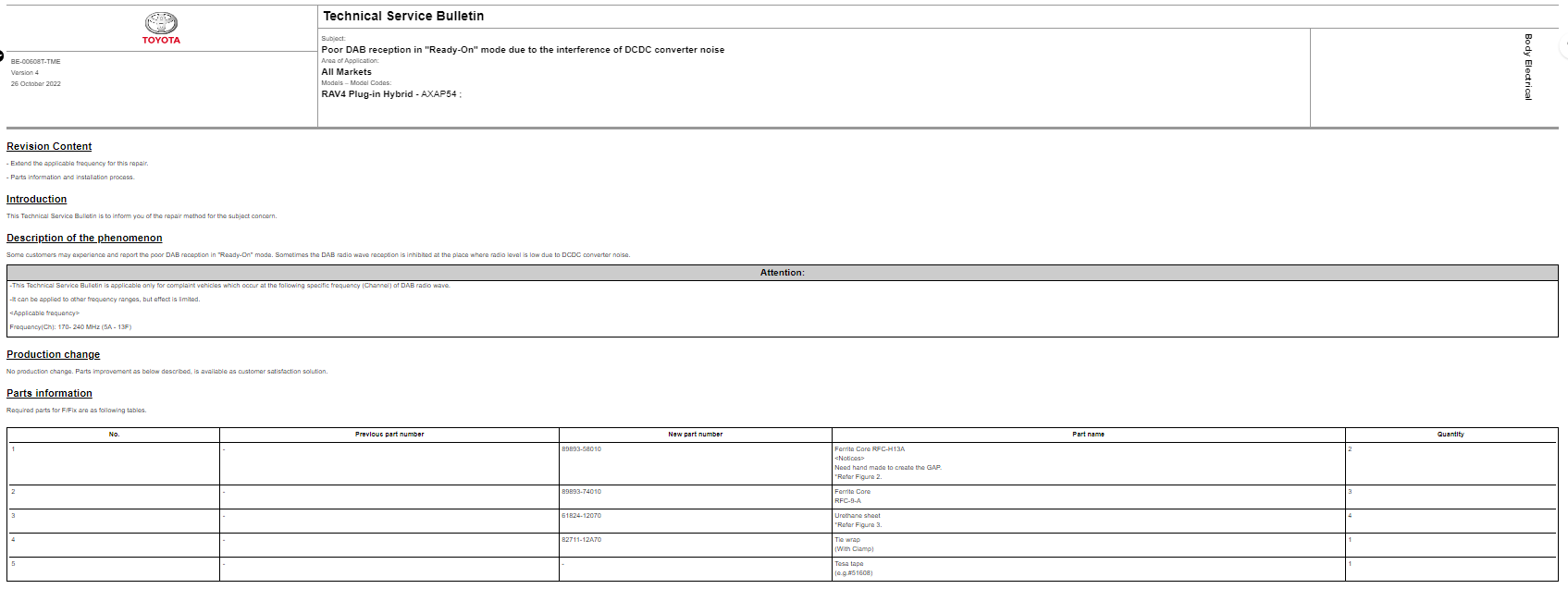

    The Sharkfin only handles the FM signal the DAB antenna is a couple of wires embedded in the top of the windscreen, out of curiosity do you have a Dashcam along the top of the windscreen? As electrical items with poor electrical shielding have been reported as affecting the DAB reception.
  8. Software is definately now separate from the Maps which will still follow the bi-annual update ( March/October ) at dealer level the first we will know is when the update and relevant technical service bulletin are uploaded to TechDoc, so no idea of when the next update is due. The latest is: Audio: no update at present Navigation: The latest version published is 1520 and includes: List of solved issues for MEU: Multimedia Extension Unit (navigation module): MEU Software release version 1520: Wrong navigation guidance speech in Hungarian: translation of word "street" said twice by the navigation unit. Wrong side of navigation traffic information for left-hand traffic countries. When using voice recognition to input an address, it does not recognise voice input. Due to error related to sampling frequency mismatch. When using map, it appears loading endlessly. Navigation cursor turning more or less than vehicle due to gyroscope wrong calibration. MEU Software release version 1512 After ignition on the map view is not displayed and the driver will see a black screen. The functions of the DCU remain fully functional. navdb_version ( Maps) 2019v1
  9. No, it is not a function available on NG Corolla
  10. Toyota only offer the exhaust in two parts : 17410-0D200 Front pipe £699 + vat 17430-0D220 Tail pipe £245 + vat I'm sure non genuine suppliers would offer cut n shut replacements for the front pipe.
  11. Sport button was on the 1.33 CVT auto and allowed the gearbox to be more sporty ( rev higher and longer )
  12. There are loads, most are very boring and the best I have found are: Remote open/close windows Auto rear wiper when front wipers operating and reverse is selected, can be set ON/single wipe , ON/constant wipe , OFF Unfortunately there is no overall list published only small charts of customisations listed under each possible selection e.g lights, locks, Windows , Nav, AC etc, etc. and it would take days to try on collate all of them. Here are lighting options for a Hybrid HB the first chart is settings via Diagnostic computer (GTS) Tester Display Description Default Setting ECU Lighting Time Changes the lighting time of the following lights that are operated by the timer function when the map light assembly door linked switch is on, room light switch LH and room light switch RH of the room light assembly are on*4, and the rear room light (No. 1 room light assembly) switch is set to DOOR*3: Map light assembly Rear room light (No. 1 room light assembly)*3 Room light assembly*4 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 15 s 10:30 s,00:15 s,01:7.5 s Main body ECU (Multiplex network body ECU) I/L when ACC OFF Lights up the following lights automatically when the map light assembly door linked switch is on, room light switch LH and room light switch RH of the room light assembly are on*4, the rear room light (No. 1 room light assembly) switch is set to DOOR*3, and the power switch is turned from on (IG) or on (ACC) to off: Map light assembly Rear room light (No. 1 room light assembly)*3 Room light assembly*4 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) I/L ON W/Door Key Unlock Lights up the following lights automatically when the map light assembly door linked switch is on, room light switch LH and room light switch RH of the room light assembly are on*4, the rear room light (No. 1 room light assembly) switch is set to DOOR*3, and the doors are unlocked by an unlock operation: Map light assembly Rear room light (No. 1 room light assembly)*3 Room light assembly*4 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Room Light when Aprchd Lights up the following lights when the map light assembly door linked switch is on, room light switch LH and room light switch RH of the room light assembly are on*4, the rear room light (No. 1 room light assembly) switch is set to DOOR*3, and the electrical key transmitter sub-assembly is brought near the vehicle*2: Map light assembly Rear room light (No. 1 room light assembly)*3 Room light assembly*4 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Inside Foot Light Turns on the following lights: Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Light Control Dims the following lights when the power switch is on (IG) and the shift lever is moved to any position other than P: Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Interior Light Control Lights up the following lights: Map light assembly Rear room light (No. 1 room light assembly)*3 Room light assembly*4 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Interior Illumination Light Turns on the following lights: Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*5 ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) *1: w/ Ambient Illumination Light *2: w/ Entry Function *3: w/ Room Light (for Slide Switch Type) *4: w/ Room Light (for Push Switch Type) *5: for Sedan or Wagon Customizing with the multi-display Turn the power switch on (IG). Enter the following menus: MENU / Setup / Vehicle / Vehicle customisation / Lights settings. Select the setting by referring to the table below. Display Default Content Setting Relevant ECU Interior Lights Auto-off Timer 15 sec. Changes the lighting time of the following lights that are operated by the timer function when the map light assembly door linked switch is on, room light switch LH and room light switch RH of the room light assembly are on*3, and the rear room light (No. 1 room light assembly) switch is set to DOOR*2: Map light assembly Rear room light (No. 1 room light assembly)*2 Room light assembly*3 Front door ambient illumination light (Front door trim board sub-assembly)*1 Rear door ambient illumination light (Rear door trim board sub-assembly)*1*4 Center tray illumination light (Instrument panel light assembly)*1 Cup holder light (Console box pocket garnish)*1 Off, 7.5 sec., 15 sec., 30 sec. Main body ECU (Multiplex network body ECU) *1: w/ Ambient Illumination Light *2: w/ Room Light (for Slide Switch Type) *3: w/ Room Light (for Push Switch Type) *4: for Sedan or Wagon Here are window settings for a Hybrid HB Power Window Tester Display Description Default Setting ECU Door Key P/W Up Function to close the power windows using the mechanical key OFF 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Door Key P/W Down Function to open the power windows using the mechanical key OFF 0:OFF,1:ON Main body ECU (Multiplex network body ECU) P/W Up W/ Transmit Function to close the power windows using the key OFF 0:OFF,1:ON Main body ECU (Multiplex network body ECU) P/W Down W/ Transmit Function to open the power windows using the key OFF 0:OFF,1:ON Main body ECU (Multiplex network body ECU) D Window Auto Up Function to enable or disable the auto up function for the driver door power window using the multiplex network master switch assembly. ON 0:OFF,1:ON Front door window regulator assembly (for Driver Door) P Window Auto Up Function to enable or disable the auto up function for the front passenger door power window using the power window regulator switch assembly ON 0:OFF,1:ON Front door window regulator assembly (for Front Passenger Door) RR Window Auto Up Function to enable or disable the auto up function using the rear power window regulator switch assembly (for RH door) ON 0:OFF,1:ON Rear door window regulator assembly (for Rear RH Door) RL Window Auto Up Function to enable or disable the auto up function using the rear power window regulator switch assembly (for LH door) ON 0:OFF,1:ON Rear door window regulator assembly (for Rear LH Door) P Window Auto Up From Driver Function to enable or disable the remote auto up function for the front passenger door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Front door window regulator assembly (for Front Passenger Door) RR Window Auto Up From Driver Function to enable or disable the remote auto up function for the rear RH door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Rear door window regulator assembly (for Rear RH Door) RL Window Auto Up From Driver Function to enable or disable the remote auto up function for the rear LH door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Rear door window regulator assembly (for Rear LH Door) D Window Auto Down Function to enable or disable the auto down function for the driver door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Front door window regulator assembly (for Driver Door) P Window Auto Down Function to enable or disable the auto down function for the front passenger door power window using the power window regulator switch assembly ON 0:OFF,1:ON Front door window regulator assembly (for Front Passenger Door) RR Window Auto Down Function to enable or disable the auto down function using the rear power window regulator switch assembly (for RH door) ON 0:OFF,1:ON Rear door window regulator assembly (for Rear RH Door) RL Window Auto Down Function to enable or disable the auto down function using the rear power window regulator switch assembly (for LH door) ON 0:OFF,1:ON Rear door window regulator assembly (for Rear LH Door) P Window Auto Down From Driver Function to enable or disable the remote auto down function for the front passenger door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Front door window regulator assembly (for Front Passenger Door) RR Window Auto Down From Driver Function to enable or disable the remote auto down function for the rear RH door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Rear door window regulator assembly (for Rear RH Door) RL Window Auto Down From Driver Function to enable or disable the remote auto down function for the rear LH door power window using the multiplex network master switch assembly ON 0:OFF,1:ON Rear door window regulator assembly (for Rear LH Door) Enter the following menus: Customize Setting / Wireless Door Lock. Select the setting by referring to the table below. Wireless Door Lock Tester Display Description Default Setting ECU P/W Wireless Ope Buzz Function to turn the wireless power window buzzer response on or off ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU) Enter the following menus: Customize Setting / Security. Select the setting by referring to the table below. Security Tester Display Description Default Setting ECU Window Open Warning Function to enable or disable the window open warning ON 0:OFF,1:ON Main body ECU (Multiplex network body ECU)
  13. The wires you need are shown from page 17 and are up in the LHS A-pillar one is on the 25 pin plug as shown on page 19 female plug Z4 it is Red and is battery + one is on the 22 pin plug as shown on page 19 male plug Z5 it is Violet and is Ignition one is on the 22 pin plug as shown on page 20 female plug Z6 it is violet and is Door switch one is on the 22 pin plug as shown on page 20 female plug Z6 it is white/black and is Ground.
  14. See Here it's actually instructions for fitting rear seat in car screens but from page 15 includes removing the centre console
